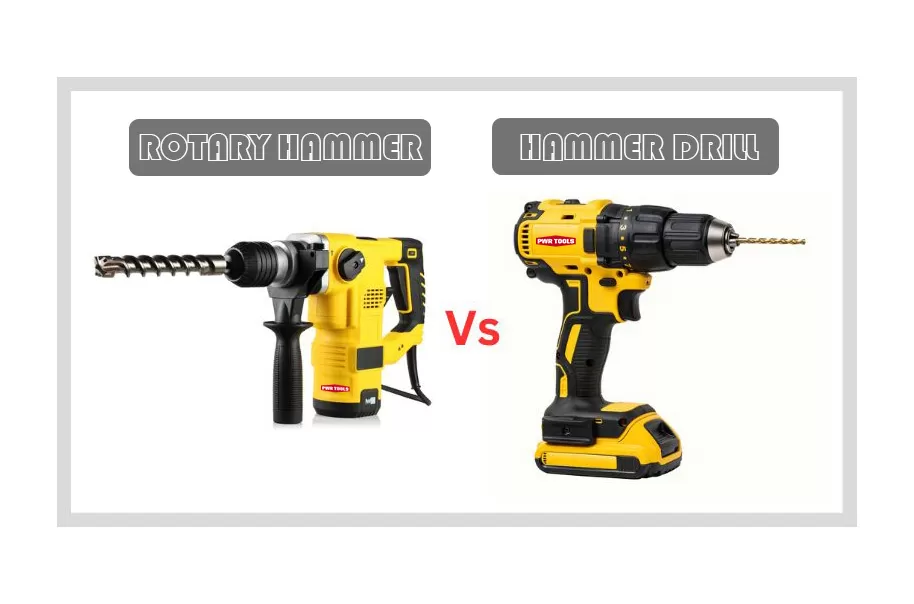

Hammer Drill vs. Rotary Hammer: Choosing the Right Tool

In the realm of power tools, the choice between a hammer drill and a rotary hammer can be the difference between a successful project and a frustrating one. At PWRTOOLS, we understand the importance of making informed decisions when it comes to your tools. In this comprehensive guide, we'll delve into the intricacies of hammer drills and rotary hammers, helping you make the right choice for your specific needs.

What is a Hammer Drill?

A hamer drill, often referred to as a percussion drill, is a versatile power tool designed for drilling into various materials, including wood, metal, and concrete. It operates by combining rotary drilling with a forward and backward hammering motion. This hammering action allows it to penetrate tougher surfaces with ease, making it a popular choice for DIY enthusiasts and professionals alike.

The Mighty Rotary Hammer

On the other hand, the rotary hammer, also known as a rotary hammer drill, is a heavy-duty powerhouse specifically engineered for drilling into concrete, masonry, and other challenging surfaces. Unlike the hammer drill, a rotary hammer boasts a pneumatic hammering mechanism, making it incredibly effective at breaking through tough materials.

Key Differences

Now, let's delve deeper into the distinctions between these two formidable tools:

Application

Both of these power tools shine when it comes to tackling heavy-duty masonry work, primarily revolving around drilling holes into resistant materials. While it's possible to use a regular drill with a masonry bit to bore into concrete, the process is fraught with difficulties.

Hammer drills and rotary hammers share a common trait: they deliver a percussive impact that aids in breezing through challenging materials, considerably easing the task. The distinction lies in their handling of dense materials; hammer drills may struggle with them, capable of boring holes only up to ⅜ inches in diameter. In contrast, rotary hammers exhibit proficiency with dense surfaces, enabling hole sizes up to a substantial 2 inches in diameter.

Hammer Drill	Rotary Hammer
Ideal for light to medium-duty tasks	Geared towards heavy-duty applications
Suitable for drilling holes in wood, metal, and softer masonry	Excels at drilling into concrete, brick, and stone
Commonly used in residential projects and general construction	Preferred by professionals working in construction and masonry.

2. Impact Mechanism

The hammer drill and rotary hammer leverage a pounding action combined with bit rotation to efficiently disintegrate material. However, the method by which this pounding action is achieved differs.

A hammer drill executes its impact through a mechanism that advances the drill bit while it rotates, resulting in a pulsating high-speed hammering effect. This occurs through the interaction of two ribbed metal discs that interlock and disengage from each other.

Users of hammer drills may have noticed that the tool doesn't engage its hammer mode until the bit is pushed into the material. This delay is due to a set of springs functioning as a clutch, separating the two discs responsible for the impact. The clutch disengages when the bit is pressed into a solid surface, allowing the discs to converge and activate the hammer mechanism.

Conversely, a rotary hammer adopts a distinct impact mechanism that resembles a piston-like arrangement. A piston is driven by a crankshaft inside the tool. This piston traverses a cylinder, creating air pressure within, leading to the tool's impact.

The compressed air empowers rotary hammers to generate additional power and absorb the shock resulting from impact. Despite its bulkiness, this mechanism allows rotary hammers to effortlessly puncture robust concrete and solid masonry.

Additionally, rotary hammers often offer various modes of operation. Some models feature a rotary-only mode that disables the hammering piston action. Others provide three settings: drill mode, hammer drill mode, and hammer mode.

Hammer Drill	Rotary Hammer
Utilizes a mechanical impact mechanism	Employs a pneumatic or hydraulic impact mechanism
Generates moderate impact force	Delivers high-impact force, enabling efficient drilling in tough materials

3. Versatility

Hammer Drill	Rotary Hammer
Offers versatility for various drilling tasks	Specialized for heavy-duty tasks
Can be used for screwdriving and regular drilling	Not suitable for tasks other than drilling and chiseling

4. Size and Weight

Hammer drills, appreciated for their compactness without sacrificing functionality, typically find favor among those engaged in less arduous tasks. Despite rotary hammer's bulkier build, it garners acclaim for its formidable strength and capacity to absorb shock.

Hammer Drill	Rotary Hammer
Generally compact and lightweight	Larger and heavier due to its robust construction
Easier to handle for extended periods	Requires more physical effort during extended use

5. Cost

Hammer Drill	Rotary Hammer
Typically more affordable.	Comes at a higher price point
A cost-effective option for occasional users	An investment for professionals who rely on its power and durability.

Making the Right Choice

When deciding between a hammer drill and a rotary hammer, consider the nature of your projects, your budget, and the frequency of use. For light to medium-duty tasks and occasional DIY projects, a hammer drill may suffice. However, for demanding tasks involving concrete and masonry, a rotary hammer is the superior choice, offering unmatched power and efficiency.

In the battle of hammer drill vs. rotary hammer, there is no one-size-fits-all answer. The best tool for you depends on your specific needs and the projects you undertake. At PWRTOOLS, we are committed to providing you with the knowledge and tools you need to make informed decisions. Whether you opt for the versatility of a hammer drill or the raw power of a rotary hammer, make sure it aligns with your project requirements for a successful outcome. For more expert guidance and a wide selection of power tools, visit our website today!
